Liquid Filling Machine HTL600
Description
Product Overview

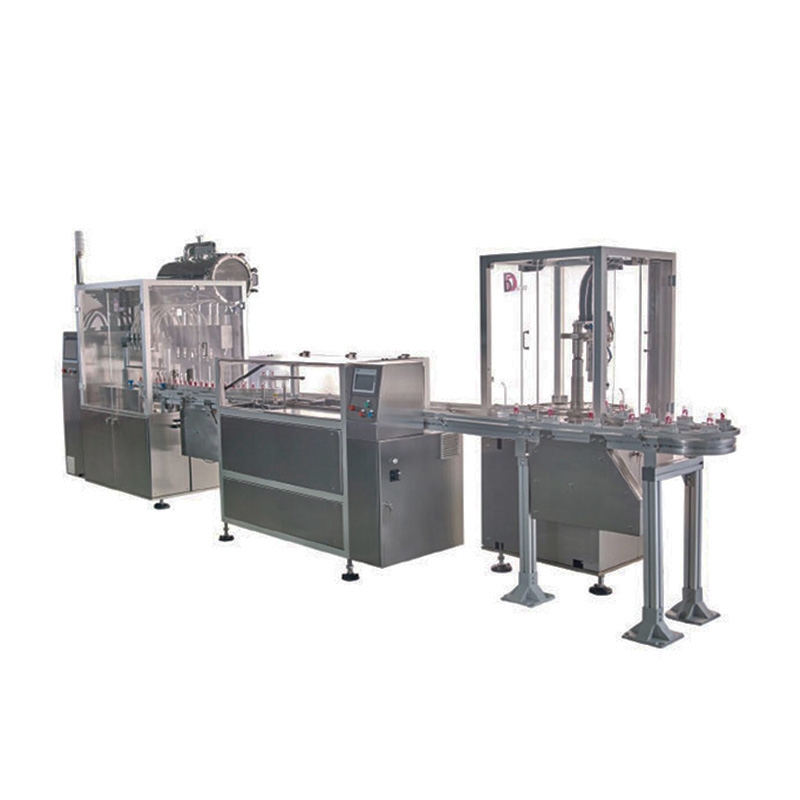

The Liquid Filling Machine HTL600 is a fully automatic liquid filling system designed to deliver high-speed and high-precision filling operations. Featuring a unique control system, this machine ensures stability and accuracy, making it an ideal choice for various liquid filling applications. Composed of three independent mechanical combinations—filling, container air cleaning, and cap locking—the HTL600 can be used as a complete system or as individual units, further enhancing production efficiency.
Key Features
Unique Control System: Ensures stable, high-speed, and high-precision filling operations.
Fully Automatic Operation: Composed of three independent mechanical combinations for filling, container air cleaning, and cap locking. Each unit can be used separately or together.

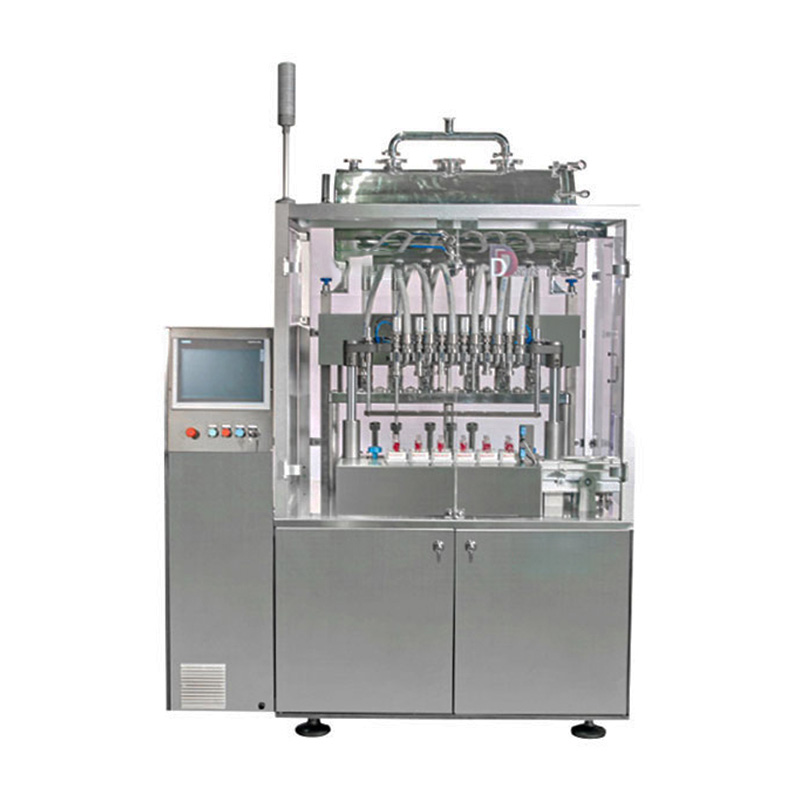

High-Speed Filling: Equipped with six filling heads, the HTL600 can fill up to 80 units per minute for volumes of 100 milliliters or less.
Servo-Controlled Filling Heads: Each nozzle and cylinder is servo-controlled, eliminating differences in filling volumes and ensuring high stability.
Versatile Container Compatibility: Suitable for bottles and jars made of glass and plastic materials, accommodating various container types.
Adjustable Cup Holder: Optional adjustable cup holder can accommodate diameters from 24mm to 55mm, allowing for quick type changes and high production efficiency.
Optional CIP Automatic Cleaning System: Ensures high cleanliness with short cleaning times, cleaning from the horizontal hopper to the nozzle.
FDA Compliant: All contact material components comply with FDA standards, ensuring safety and reliability.
Specifications
Model: HTL600
Filling Capacity: Up to 80 units per minute (for filling volumes of 100 milliliters or less)
Filling Heads: Six
Container Material: Glass, Plastic
Container Types: Bottles, Jars
Adjustable Cup Holder Diameter: 24mm to 55mm (optional)
Control System: Unique control system with servo control for each nozzle and cylinder
Optional CIP System: Automatic cleaning from horizontal hopper to nozzle
Compliance: FDA-approved materials for product contact parts
Applications
The Liquid Filling Machine HTL600 is versatile and can be used in various industries, including:
Cosmetics: Ideal for filling lotions, serums, and other liquid cosmetic products.
Pharmaceuticals: Perfect for filling medicinal liquids, syrups, and solutions.
Food & Beverage: Suitable for filling sauces, juices, and other liquid food products.
Chemicals: Can be used for filling various liquid chemical products, including cleaners and solvents.
